Electrical Galvanized Steel Pipe Supplies Rigid Aluminum Conduit Aluminum Electrical Metallic Tubing (EMT)
Description:

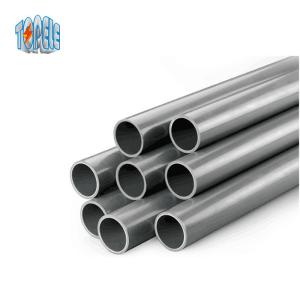

ANSI C80.3-1983 Electrical Pre-galvanized /Hot-dipped Galvanized EMT Conduit Pipe
EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration
- The main markets of EMT Aluminum conduit are Latin America, South America, America, dubai and other middle eastern countries
- Corrosion resistance
- long-lasting protection
- Approximately one-third the weight of steel, light weight.
- 10' lenghts, with special lenght available
- Easy to Install – Can be easily cut, bend without special tools
Applications:
TOPELE EMT Aluminum conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of aluminum alloy, it has a strong corrosion resistance,and light weught help people wasy to intall.
Specifications:
- Standard: 1/2"-4" EMT ALUMINUM CONDUIT X 10' / UL797&C80.3-1983
- Brand Name: TOPELE
- Color Family : Metallics
- Conduit type : Metallic
- Type : Conduit
- Flexible : No
- Length : 10 ft.
- Material : aluminum
- Size: from 1/2" to 4 "
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
| |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | | | |
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 | |
| Nominal diameter | External diameter | Thickness of wall | Length | Packing | Weight/Unit(kg) |
| EMT Tube - thin wall thickness pipe | | | |
| 1/2" | 17.93mm | 0.85mm | 3.05m | 20pcs/bundle | 1.092 |
| 3/4" | 23.42mm | 1mm | 3.05m | 15pcs/bundle | 1.499 |
| 1" | 29.54mm | 1.1mm | 3.05m | 10pcs/bundle | 2.353 |
| 1-1/4" | 38.35mm | 1.30mm | 3.05m | 5pcs/bundle | 3.623 |
| 1-1/2" | 44.2mm | 1.30mm | 3.05m | 5pcs/bundle | 4.195 |
| 2" | 55.8mm | 1.40mm | 3.05m | 5pcs/bundle | 5.728
|
Advantage
Price: Aluminum EMT is 30% lower than Steel.
Weight: Aluminum EMT is 70% lighter than Steel.
Installation: Aluminum EMT is 50% Less than Steel.
Surface Treatment: Aluminum EMT can be used with/without Oxidation, Steel must be galvanized, Poisonous and Pollutional.
